2020+ Toyota GR Yaris – DBA T3 5000 Series Front Brake Discs – Pair
£933.92 Ex.Vat | £1,120.70 Inc.VAT
SKU# 100949 | MPN: DBA53922BLKS

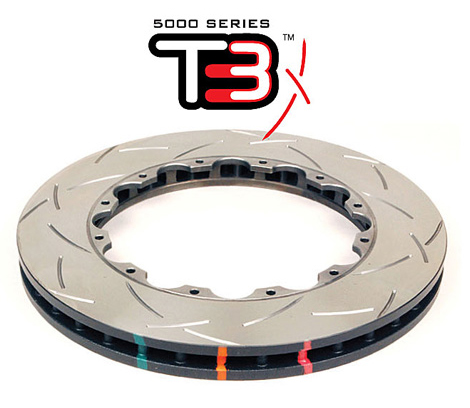

 T3 Slotted Black Hat 5000 Series Front Brake Disc, Price for a Pair
- Diameter [mm]: 356
- Number of Holes: 5
- Inner Diameter [mm]: 62
- Minimum Thickness [mm]: 26
- Thickness [mm]: 28
- Height [mm]: 49.5
- Disc Vent: Kangaroo Paw
- Replacement Rotor: DBA53922.1S
- Weight [KG]: 10
- Tech Bulletins: Bedding in Brakes
- Tech Bulletins: How to clean a Disc Rotor before fitting
- Tech Bulletins: Motorsport – Important Info
Please Scroll Down for Infomation
Description

| Feature Description | Advantage | Benefit |
|  “T3 Slot 48 precision CNC machined slots” | Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
| ) Kangaroo Paw – 144 diamond and tear drop pillar ventilation system | Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
|  XG150 High Carbon Alloyed Iron | An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
|  Thermal Stability Profiling | Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
|  Thermographic Temperature Monitoring | Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
|  Paint protection on non-friction areas | Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
