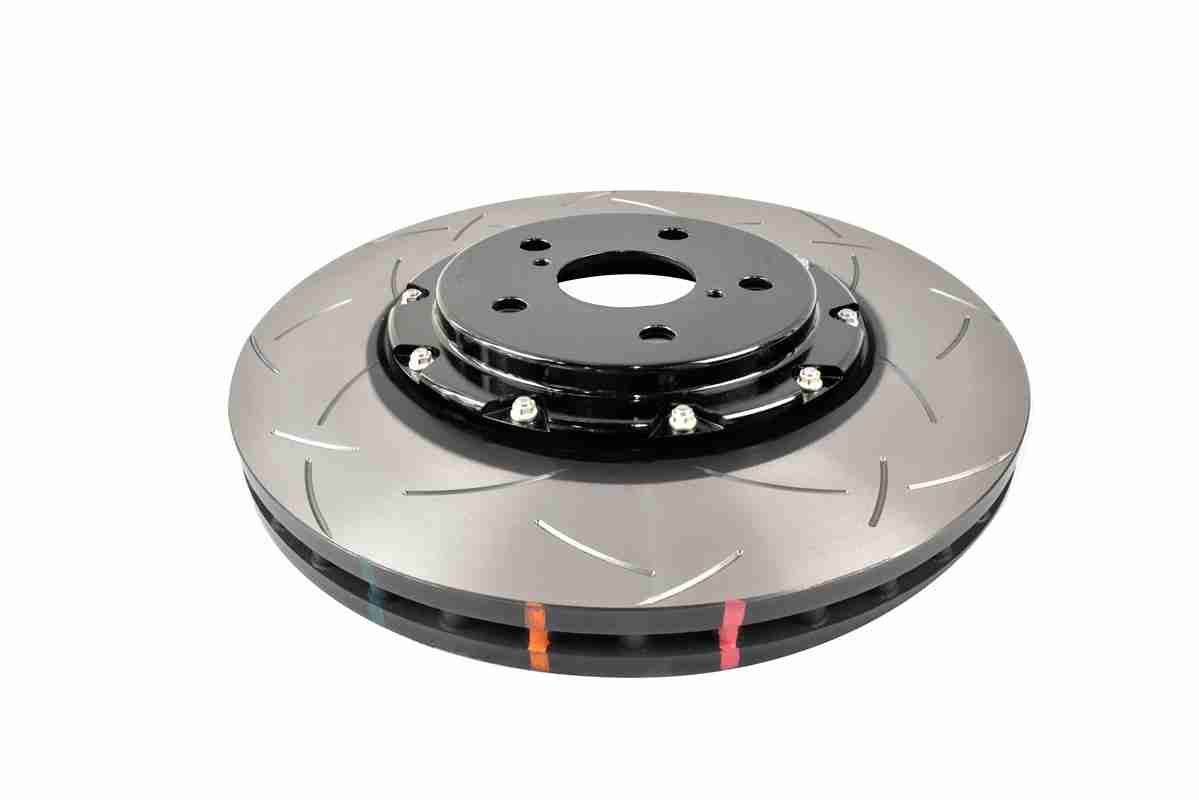

2020+ Toyota GR Yaris – DBA T3 5000 Series Slotted Front Brake Rotors Only – Pair

Name: 2020+ Toyota GR Yaris - DBA T3 5000 Series Slotted Front Brake Rotors Only - Pair
SKU: 100951
Availability: InStock

£548.40 Ex.Vat | £658.08 Inc.VAT

SKU# 100951 | MPN: DBA53922.1S

T3 Slotted 5000 Series – Rotors Only (Suitable for DBA53922BLKS), Price for a Pair

Diameter [mm]: 356
Thickness [mm]: 28
Disc Vent: Kangaroo Paw
Annulus [mm] (Maximum useable pad width): TBA
Pitch Circle Diameter (P.C.D.): TBA
Inside Diameter [mm]: TBA
Diameter & Number of Bolt Holes [mm]: TBA
Air Gap [mm]: TBA
Offset [mm]: TBA
Flange Inside Diameter [mm]: TBA
Flange Thickness [mm]: TBA
Hole Type: TBA
Stage: Stage 5
Replacement Nuts: Included
Weight [KG]: 9.5
Tech Bulletins: Bedding in Brakes
Tech Bulletins: How to clean a Disc Rotor before fitting
Tech Bulletins: Motorsport – Important Info

Please Scroll Down for Infomation

SKU: 100951 Categories: * Car Brand, * Parts Brand, > Brakes, > DBA, > Discs, > Toyota

Description

Feature Description	Advantage	Benefit
“T3 Slot 48 precision CNC machined slots”	Tri-Symmetrical curve slots dampens the vibration harmonics or noise	A quieter, responsive and smoother brake pedal feel
	Increased number of out-gassing exit points for brake pad friction gasses to escape through	Increases the consistency and effectiveness of every brake stop
	Universal slot design	Eliminates the need for left and right discs
Kangaroo Paw – 144 diamond and tear drop pillar ventilation system	Increased surface area resulting in greater heat dissipation	Minimises brake fade and increases braking effectiveness
	Increased surface area resulting in greater heat dissipation	Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs
XG150 High Carbon Alloyed Iron	An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time	Minimises warping and cracking and prolongs the service life of the rotor
Thermal Stability Profiling	Special formulation designed to respond to DBA’s TSP process	Minimises warping and cracking and prolongs the service life of the rotor
Thermographic Temperature Monitoring	Heat paint markings change colour at specific temperature thresholds	Offers the driver a clear indication of peak braking temperatures
Thermographic Temperature Monitoring	When temperature thresholds are exceeded paint markings will permanently change colours	Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims
Paint protection on non-friction areas	Reduces corrosion	Stops any unsightly rust formation
Paint protection on non-friction areas	Enhances appearance	Adds value to the product
