92-07 Subaru Impreza (5-Speed) – Xtreme 200mm Sprung Ceramic Twin Plate Clutch Kit
£1,207.39 Ex.Vat | £1,448.87 Inc.VAT
SKU# 4482 | MPN: KSU20520-2B
Xtreme Performance – 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm
- Ideal for track day cars
- 12 month Manufacturers Warranty
- Serviceable components
Product Details
- Clutch Disc Diameter (mm): 200
- Clutch Disc Spline Count: 24
- Clutch Disc Spline Diameter (mm): 25.5
- Torque (Nm): 1200
- Flywheel Step: +2.2mm
- Design: Twin Plate
- Stage: Multiplate – track use only
- Tech Bulletins: TSB-200-2-X-1TSB-228
- Clamp Load: 1100Kg
- Recommended for: Motorsport
- Weight (kg): 16.47
Applications
- Impreza WRX / STI 1992 to 2000
- Impreza WRX 2001 to 2007
Please scroll down for additional infomation.
Description
Xtreme Motorsport 200mm twin plate
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

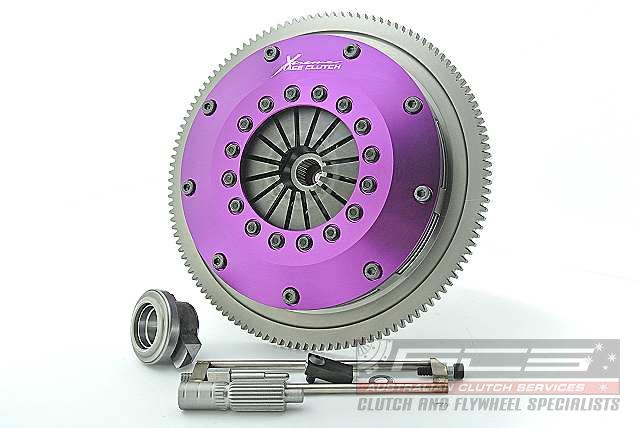

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).
Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Rigid driven discs (individual hubs)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7.4kg |
| Disc Set Static Mass | 2.15kg |
| Friction Thickness New | 7mm (0.275″) |
| Friction Thickness Worn | 6.48mm (0.255″) |
